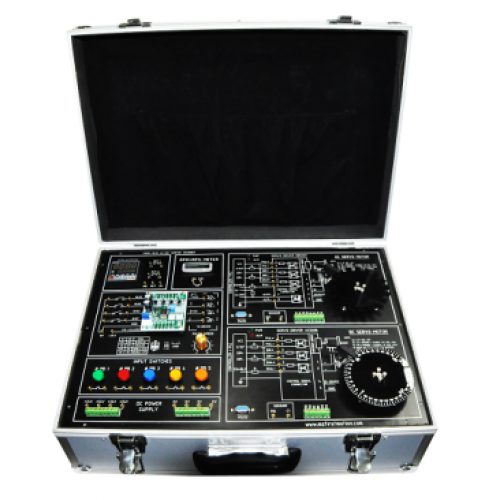

DC Servo Motor Closed-Loop Control Trainer
Model reference MZM-2020
- Category: Mechatronics
- Model reference: MZM-2020
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
1. Product Structure:
- Using aluminum alloy box structure.
2. Main Parameters:
- Ø The overall size: 420 mm x 300 mm x 120 mm;
- Ø The power supply: single-phase AC220V ,50 HZ,< 50 W.
3. Main Composition:
- Dc servo motor
- Rotational speed meter
- Feedback device
- Control circuit module
4. Main Functions:
- Understand and application of dc servo motor, understand and application of dc servo drive , dc servo
- Manual control experiment, dc servo typical speed closed-loop control application experiment, complete the analog circuit realize dc servo motor speed closed-loop adjusting loop (P, I, D) related training.
5. Annex:
- Experimental jump line, related tools, the product specification.
6. Training Projects
- 1. Dc servo motor know applications
- 2. The dc servo drive know applications
- 3. Dc servo manual control experiment
- 4. Dc servo typical speed closed-loop control application experiment
