Digital DVP-730 Fusion Splicer Fiber Cleaver Kit
Model reference MZM-9001
- Category: Test & Measurement
- Model reference: MZM-9001
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
Description:
- Color LCD monitor & 256 magnification
- Compact & Light weight
- Reversible monitor with control panel on each side
- Max. Wind velocity of 15m/s.
- 8 Sec. splice time, 40 Sec. tube-heat time
- Simultaneous X and Y views
- Large capacity internal battery
- SYSTEM TEST ensures the best working condition
- User programmable
- Auto check fiber end face
- Auto calibrate parameters
- Store 8000 groups of splice results
- Multiple language options
|
Applicable fiber |
SM MM DSNZ-DSEDF |
|
Cladding diameter |
100 to 150um |
|
Coating diameter |
100 to 1000um |
|
Fiber cleaved length |
8-22mm (standard) |
|
Splicing mode |
Auto & Manual |
|
Average splice loss |
0.02dB(SM) 0.01dB(MM) n0.04dB(NZDS) |
|
Return loss |
>60bd |
|
Environment condition |
-2550 (operating temperature, 095%RH (humidity), 05000m (altitude) |
|
Storage environment |
-40+80(temperature) , 095RH (humidity) |
|
Protection sleeve length |
20mm 40mm 60mm |
|
Tension test |
2.0N (standard) |
|
Language |
English, Chinese, Korean, Russian, Spanish etc |
|
Interface |
RS232 interface & video output |
|
Power supply |
AC adaptor 85260V input voltage Internal battery 12V voltage, 10Ah, more than 200 times of continuous splices and heats DC adaptor 12V voltage, optional multipurpose external battery |

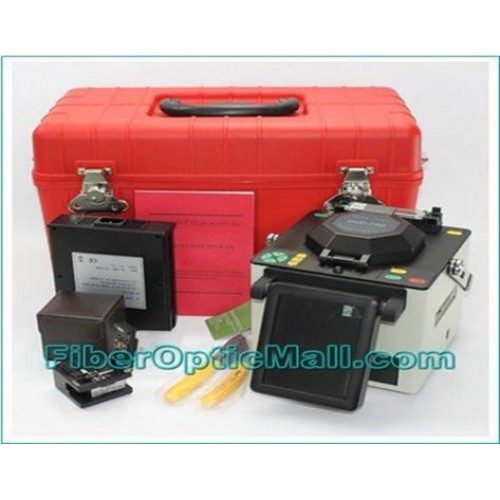

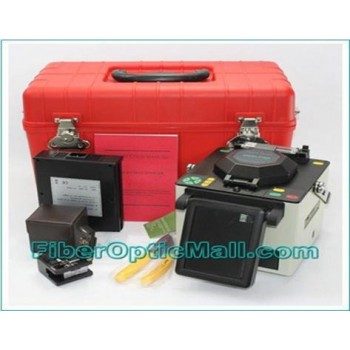

CONFIGURATION
- DVP-730 Main Body
- DVP-105 Fiber Cleaver
- Fiber Coat Stripper
- Internal Battery
- Charger, AC Power Cord
- USB Flash Disk
- Spare Electrodes (one pair)
- Cooling Tray, Alcohol Pump Bottle, Blower Brush
- Carrying Case
- User's Manual.
