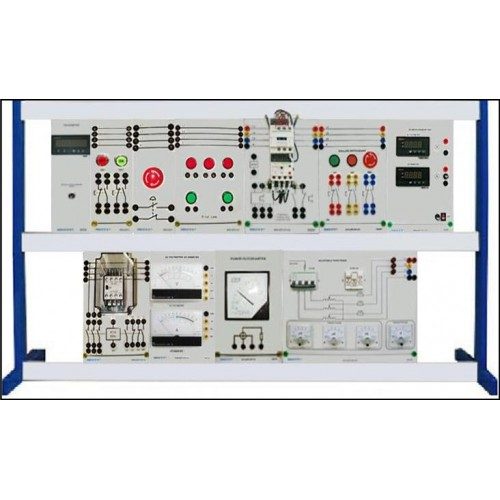

Experimental Panel AC Machines

DESCRIPTION :

The experimental panel system is used for the coherent teaching of the principal mechanical configuration and basic operating principles of the most important AC machines in teacher-oriented lessons and lectures to conduct the experimental groups.

PRODUCT MODULE :

1. TACHOMETER

• RPM Range: 0…9999rpm
• Input: AC 240V

2. POWER FACTOR

• Range: 0.5 (Lag)…1…0.5 (Lead)

3. METER Y-DELTA TIMER RELAY

• Voltage: 240VAC
• Contact: NO & NC
• Time : 0…60seconds

4. PILOT LAMP

• Pilot Lamp x 5 units
• Input: 240VAC

5. THERMAL CONTACTOR RELAY

• Rated Voltage : 240VAC
• Rated Current : 2.8A-22A

6. SIMULATE SWITCH BOARD

• Rated voltage : 240VAC
• Push Button x 3 units

7. AC MEASUREMENT UNIT

• Voltmeter range: 0…500VAC
• Ammeter range: 0…2A
• Input: AC 240V, 50Hz 1-Phase

8. THREE PHASE CONTACTOR

• Rated Voltage : 415VAC
• Rated Current : 10A
• Coil Voltage: 240VAC x 3 unit

9. AC VOLMETER & AC AMMETER

• Measurement Mode : AC
• Voltage Ranges : 5V,50V,250V,1000V
• Current Ranges : 1A, 5A, 25A

10. KILOWATT METER

11. ADJUSTABLE THREE PHASE

• Protection Fuse 2A x 3 units
• Pilot Lamps L1 , L2 & L3
• Fault Current Circuit Breaker 3 Poles
• Output: 0…240VAC x 3 units
• 0…415VAC
• Input: AC 415V, 50Hz 3-Phase

12. THREE PHASE SYNCHRONOUS GENERATOR

• Power: 170W
• Voltage: 415VAC
• Current: 0.43A
• Excitation Voltage: 12VDC
• Excitation Current: 1.4A
• Speed: 1500rpm
• Connection: Υ

13. THREE PHASE SALIENT POLE MACHINE

• Power: 300W
• Voltage: 415VAC
• Current: 1.17A
• Excitation Voltage 12VDC
• Excitation Current: 0.3A
• Speed : 1800rpm

14. THREE PHASE SYNCHRONOUS MOTOR

• Rated power:100W
• Rated voltage: 380V(Y)
• Rated current: 0.6A
• Rated speed: 1400rpm
• Insulation class: E

15. SINGLE PHASE SYNCHRONOUS GENERATOR

• Power: 250W
• Voltage: 240VAC
• Current: 1A
• Speed: 1400rpm

16. WOUND ROTOR INDUCTION MACHINE

• Power: 100W Voltage: 415VAC Current: 0.55A
• Excitation Voltage: 12VDC
• Speed: 1400rpm
• Connection: Δ & Υ

17. THREE PHASE INDUCTION MOTOR

• Power: 170W
• Voltage: 415VAC
• Current: 0.45A
• Speed: 1500rpm
• Connection: Δ & Υ

18. SINGLE PHASE SYNCHRONOUS MOTOR

• Power: 250W
• Voltage: 240/415VAC (Δ / Υ)
• Current: 2.2/1.3A (Δ / Υ)
• Speed: 1725rpm

19. SINGLE PHASE CAPACITOR START INDUCTION MOTOR

• Power: 200W
• Voltage: 240VAC
• Current: 2.5A
• Speed: 1725rpm

20. PERMANENT SPLIT CAPACITOR MOTOR

• Power : 250W
• Voltage: 240VAC
• Current: 1A
• Frequency: 50HZ
• Speed: 1400rpm
