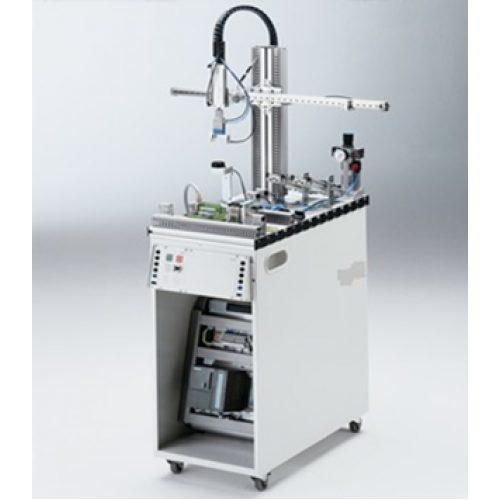

Module Handling Station (Copy)
Mechatronics

Module Handling Station (Copy)

Model reference MZM-2019

  • Category: Mechatronics
  • Model reference: MZM-2019
  • Built to order in our Penang workshop
  • Delivery, installation and commissioning available
  • Lecturer training and documentation included

Mechatronics training equipment combines mechanical, electrical and control elements: PLC and HMI programming, sensors, actuators, conveyor and handling stations, and servo or stepper positioning. Students build and commission a complete sequence, then troubleshoot it, linking the program on screen to the machine on the bench. Units are built to order in Malaysia so the controller brand, I/O count and station layout follow your TVET, polytechnic or degree syllabus.

Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.

Specification

Composition
Module Handling Station.
Transfer the work piece using pneumatic gripper
Faulty product is assorted by slide

- Size: 750(W)×750(D)×1000(H)mm
- Weight: 67Kg
- Input power: AC 220V, 60Hz
- Output power: DC 24V, 3A
- Operating pressure: 5 ~ 6 bar
- Interface : 1. Digital Input/output (default) Interfacing module, electrical

Specification

· Working Table

· Service Unit FRL

· Roadless Linear Cylinder

· Air Gripper

· I/O Terminal for Panasonic Communication PLC

· Multi-pin plug distributor

· Holder module

· Diffuse sensor

· Slide module

· Valve terminal

· Start-up valve with filter control valve

· Aluminum profile plate

· Profile plate connector

· Control Panel for Switchers

· Tabletop power supply unit

· work piece set and Cable

· Trolley

· Panasonic PLC for Programming

Want this adapted to your lab?

Tell us the experiments, the class size and the space you have. We will quote the unit built to match.
