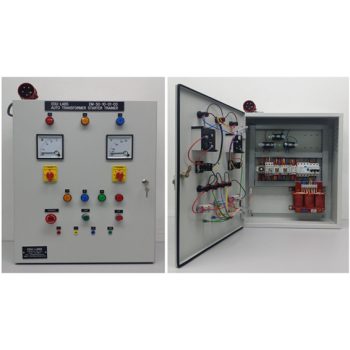

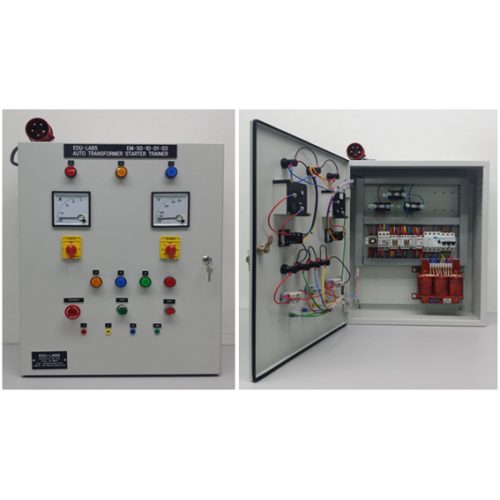

Motor Control Auto-Trans Panel

SPECIFICATION:

i. Features:

a. Ratings of autotransformer starters are less than the conventional motor starter ratings for the higher kilowatt motors.

b. Main, size of auto transformer is very small, so effective material will reduce the cost.

c. Effectively reducing the material makes the copper and iron losses less so auto transformer when compared to normal isolation transformers, have high efficiency.

ii. On panel box must include

a. 30A TPN MCCB 14KA (Metalsol, ABN) : 1 no

b. 40/0.3 4P RCCB (RKN) : 1 no

c. 30/5 Ammeter : 1 no

d. 500V Voltmeter: 1 no

e. 60/5 CL1 15VA CT : 3 nos

iii. Outgoing

a. 10A 3P MCB 6KA (BKN) : 1 no

b. 4.00kW Auto Transformer Starter : 1 no

c. 3.75kW Auto Transformer : 1 no

d. 30 sec 240V timer c/w base : 1 no

e. 240V AC Relay MY4 c/w base : 3 nos

f. Indicator light (green red) : 2 nos

g. Push button (on off button) : 2 nos

h. 6” EX Fan c/w filter : 1 no

i. 6A 1P MCB 6KA (Control fuse, BKN) : 1 no

ACCESSORIES:

i. In font of panel board accessories:

a. 30/5 Ammeter

b. 500V Voltmeter

ii. On panel box accessories:

a. Tagging/labeling on connected wire

POWER REQUIREMENT:

Power supply: AC input 415 Volt +/- 10%, 50Hz, 3-phase

Panel Board

· Panel Mounted type for each starter position to provide real industrial experience.

· Heavy sheet steel console with hinged section front covers, Baked epoxy powder finished.

· All Motor Starter with clear label & symbol.

LITERATURE

· All manuals are written in English

· Model answer

· Teaching manuals

COURSEWARE & ACCESSORIES

· Laboratory Manual

· Instructor’s Guide

COUNTRY OF ORIGIN

Made In Malaysia

WARRANTY
