Programmeble Relay
Model reference MZM-2023
- Category: Mechatronics
- Model reference: MZM-2023
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
DESCRIPTION

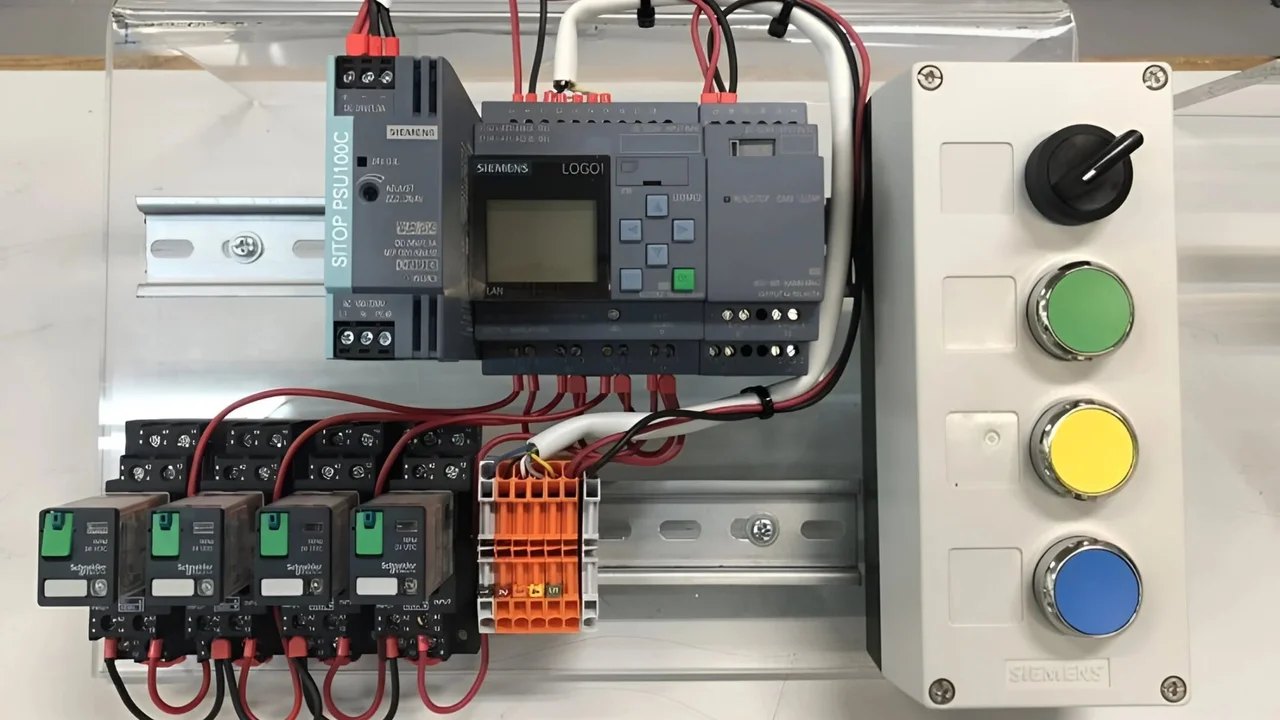

A programmable relay, often a compact version of a plc (programmable logic controller), allows for simple programming to control electrical circuits, making it ideal for hands-on learning. by simulating small projects, such as controlling fan speeds or managing lighting based on sensor input.
B. SPECIFICATIONS
LOGO! Basic Modules
Display - with display - Yes
Installation type/mounting
Mounting - on 35 mm DIN rail, 4 spacing units wide
Supply voltage
Rated value (DC)
a.115 V DC Yes
b.230 V DC - Yes; 240 V DC
Permissible range, lower limit (DC) - 100V
Permissible range, upper limit (DC) - 253 V
Rated value (AC)
a. 115 V AC Yes
b. 230 V AC - Yes; 240 V AC
Line frequency
a. permissible range, lower limit - 47 Hz
b. permissible range, upper limit - 63 Hz
Time of day
Time switching clocks
a. Number - 400; Max. 400, function-specific
b. Power reserve - 480 h
Digital inputs
a. Number of digital inputs - 8
Digital outputs
a. Number of digital outputs 4, relays
b. Short-circuit protection no, external fusing necessary
Relay outputs
Switching capacity of contacts
a. with inductive load, max. 3 A
b. with resistive load, max. 10 A
EMC
Emission of radio interference acc. to EN 55 011
a. Limit class B, for use in residential areas - Yes; Radio interference suppression according to EN55011, Limit Value Class B
Standards, approvals, certificates
a. CE mark - yes
b.CSA approval - No; covered by UL cert
c. UL approval - yes
d. FM approval - yes
e. developed in accordance with IEC 61131 - yes
f. according to VDE 0631 yes
g. Marine approval - Yes; in preparation
Ambient conditions
Ambient temperature during operation
a. min. - -20 C; No condensation
b. max. - 55
Ambient temperature during storage/transportation
a. min - ( - 40 C )
b. max. (70 )
Altitude during operation relating to sea level
a. Ambient air temperature-barometric pressure-altitude - Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)
Dimensions
a. Width - 71.5 mm
b. Height - 90 mm
c. Depth - 60 mm
Accessories input & output
a. Start & stop button come with push button box
b. Signal Tower lamp foldable (red/yellow/Green) 3 phase distribution box metal type complete with DIN rail and cable ducting
