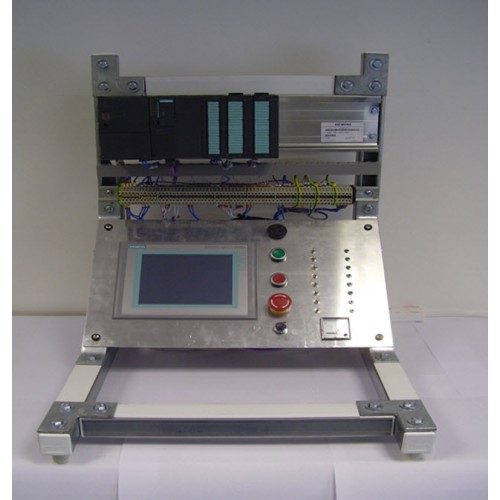

PLC Trainer with HMI Controller

Specification:

a. System house in a portable and robust case from factor

b. Built in simulation switches and output indicators

c. Central processing unit: Modular CPU, mounted onto a DIN rail within the main base console unit

d. CPU I/O capacity:2560 I/O bits; No. of connectable units: 10 max.

e. Programming capacity: 5Ksteps; Data memory capacity: 64K words

f. Basic (LD) instruction execution time: 40ns; special (MOV) instruction execution time: 120nS

g. Overhead time: 160ns

h. CPU power, Run, Error, Communication indicator

i. Built- in USB interface port(x1) and RS232C port(x1)

j. Built in 24VDC/2A power supply (short circuit protection) with fuse protection

k. Power ON/OFF switch with indicator

l. LED I/O indicator

m. All I/O connectors & peripherals are clearly labeled on the front panel

n. Base unit can be tilted or horizontally placed for convenience & ease of operation

o. Includes 16 inputs (24VDC) module and 16 output (relay contact) module unit, mounted onto DIN rail

p. Include 14W power supply unit (output: 5VDC/2.8A; 24VDC/0.4A), mounted onto DIN rail.

q. External input interface: 16 integrated standard 4mm connector socket with COM

r. External output interface:16 integrated standard 4mm connected socket with COM

s. Input simulation : 16 toggle switches; output simulation : 16 lamp , 1 x buzzer

t. Analog I/O unit : 4 analog inputs/ 2 analog output

u. Two voltmeter for voltage monitoring

v. HMI unit (5.6 inch color touchscreen LCD) with USB port and programming table x 1 support ladder programming software CX-ONE (licensed)

w. 24VDC power supplies distributor: 3 x 24VDC

x. Input power : 240VAC/50Hz

y. Operation manual (hardcopy)

z. Programming & hardware manual (on CD)

aa. Student workbook with experiment (hardcopy & CD)

bb. Warranty: one year limited warranty against manufacturing defects

cc. Training include
