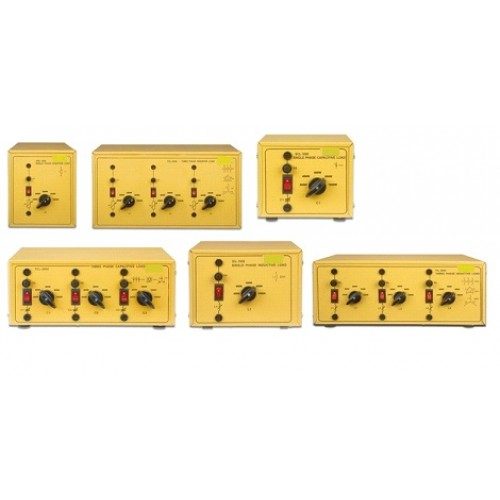

Single & Three Phase Load
Electrical Engineering

Single & Three Phase Load

Model reference MZM-4028

  • Category: Electrical Engineering
  • Model reference: MZM-4028
  • Built to order in our Penang workshop
  • Delivery, installation and commissioning available
  • Lecturer training and documentation included
WhatsApp for a quote Email enquiry

Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.

Specification
SINGLE & THREE-PHASE LOAD

Features

  • Steps of 20%
  • DC mode or 220V(50Hz) single phase
  • Three-phase star 380V(50Hz) and delta 220V(50Hz)

MZM-4028-1


Cooling Fan

MZM-4028-2
Model Power Resistor Dimensions
(W×H×D) mm		 Weight
(kg)		 Phase
MZM-4028-1 200W/400W/600W
800W/1000W		 242Ω/121Ω/81Ω
61Ω/48Ω		 200×250×425 8 Single
MZM-4028-2 (200W/400W/600W
800W/1000W)×3		 (242Ω/121Ω/81Ω
61Ω/48Ω)×3		 400×250×425 24 Three


MZM-4028-3

MZM-4028-4
Model Power Capacitor Dimensions
(W×H×D) mm		 Weight
(kg)		 Phase
MZM-4028-3 200W/400W/600W
800W/1000W		 13μF/26μF/39μF
53μF/66μF		 150×130×185 1.5 Single
MZM-4028-4 (200W/400W/600W
800W/1000W)×3		 (13μF/26μF/39μF
53μF/66μF)×3		 300×130×185 3 Three


MZM-4028-5
MZM-4028-6
Model Power Inductor Dimensions
(W×H×D) mm		 Weight
(kg)		 Phase
MZM-4028-5 200W/400W/600W
800W/1000W		 770mH/385mH/257mH
193mH/154mH		 190×150×365 10 Single
MZM-4028-6 (200W/400W/600W
800W/1000W)×3		 (770mH/385mH/257mH
193mH/154mH)×3		 380×150×365 30 Three
