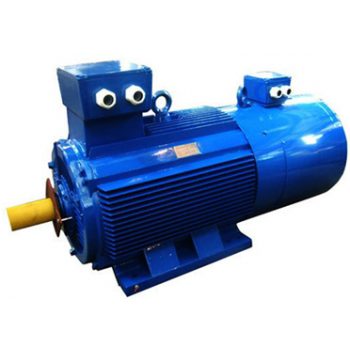

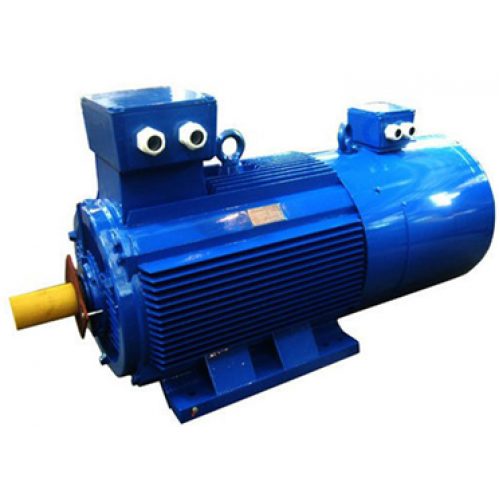

Three Phase Induction Motor

TECHNICAL SPECIFICATIONS :

Section

· 415VAC, 30A, 3 phase, 50Hz via input 5 core cable with 3 phase 5 pin AC Socket CEE 32A

2. Controls, Protections and Instruments Section

· Mushroom Head Emergency Stop Button : AC 300V, 3A, 22mm, LED 220VAC

· Flat-Head Push-Button Switch : AC 300V, 3A, 22mm, Red, Green

· LED Indicator : 240V AC, 22mm, Red, Green, Blue & Yellow

· Terminal Block : 600V max, 10A

· Miniature Circuit Breaker : 3Pole, 240/415 V, 10 A, 50/60 Hz

· Earth Leakage Circuit Breaker : 4Poles ,415 V, In = 40 A, I∆n = 300 mA

· Thermal Overload Relay : 5-8 A adjustable

· Magnetic Contactor : 3 Pole, 220 V- 13A, 440V- 9A, 7.5 HP

· Auxiliary Contact Block : Front Mount 2 Pole Block

· Single-Range Analogue Timer : 240V AC, 50 HZ, 0-30 S adjustable, AH3-3

· Three–Phase Induction Motor : 2.2 KW, 415V AC, 50 Hz, 1440 rpm

· Three–Phase Auto-Transformer : 3.75 KW, 415/290 VAC

· Ammeter Selector Switch : Single pole, 20A, 440V

· Voltmeter Selector Switch : 3φ to neutral, 20A, 440V

· Analogue AC Ammeter : 30 A

· Analogue AC Voltmeter : 0~500VAC

· Current Transformer : 30/5 A, 5VA

3. Panel Board

· Panel Mounted type for each starter position to provide real industrial experience.

· Heavy sheet steel console with hinged section front covers, Baked epoxy powder coating finished.

· All Motor Starter with clear label & symbol.

SLIP RING INDUCTION MOTOR 3 PHASE 400V 50HZ

TECHNICAL SPECIFICATION :

· Voltage : 415VAC, Three-phase, 50Hz

· Power : 15HP

· Output speed : 1500 rpm/4 Pole

· Frame and Cooling : Drip-proof / totally enclosed for cooled (TEFC)

· Mounting : Foot mounting

· Insulation Class : Class F or better

· Temperature rise : 80°C

COURSEWARE & ACCESSORIES

· Laboratory Manual

· Instructor’s Guide

COUNTRY OF ORIGIN

Made In Malaysia

WARRANTY

1 Year
