Three Phase Synchronous Machine Trainer

TECHNICAL SPECIFICATION :

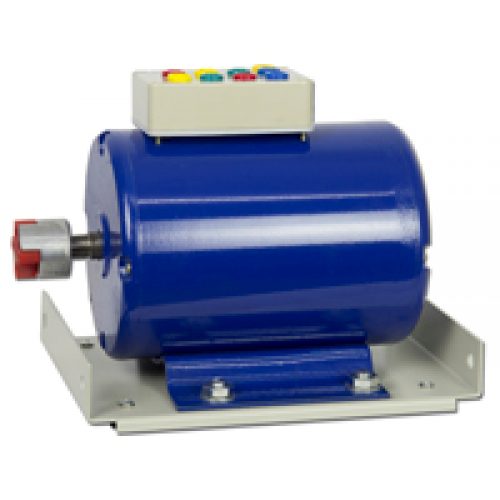

1. MZM-4017-1-SYNCHRONOUS MACHINE MOTOR

Three-phase model synchronous machine with salient pole rotor and damper cage for motor and generator operation

· Voltage: 220V/380V

· Current:0.3A

· Frequency: 50Hz

· Rotor volage: 24VDC

· Rotor current: 2.6ADC

· Output power: 150W

· Rotate speed: 1500rpm

· Shaft height: 81mm

· Dimension: 240x170x180mm

2. MZM-4017-2-SYNCHRONOUS MACHINE GENERATOR

Three-phase model synchronous machine with salient pole rotor and damper cage for motor and generator operation

· Voltage:220V/380V

· Current:1.2A

· Frequency:50Hz

· Outputpower:150W

· Rotatespeed:1420rpm

· Shaftheight:81mm

· Dimension: 280x170x180mm

3. MZM-4017-3-RESISTIVE LOAD

· Steps of 20% DC mode or 220V(50Hz) single phase
Three-phase star 380V(50Hz) and delta 220V(50Hz

· Have series resistor and fuse for parallel, star and delta circuits

· Resistance : (242Ω/121Ω/81Ω/61Ω/48Ω)×3

· Power : (200W/400W/600W 800W/1000W)×3

4. MZM-4017-4-INDUCTIVE LOAD

· Suitable for parallel, series and delta circuit

· Inductor : (770mH/385mH/257mH/193mH/154mH)×3

· Power: (200W/400W/600W/800W/1000W)×3

5. MZM-4017-5-CAPACITEVE LOAD

· Three groups capacitors, each consisting of four capacitors, suitable for parallel, series, star and delta circuits.

· Capacitors : (13μF/26μF/39μF/53μF/66μF)×3

· Power : (200W/400W/600W\/800W/1000W)×3

6. MZM-4017-6-THREE-PHASE SUPPLY UNIT WITH ELCB

· Have switch the 3 phase supply for line voltage 400V

· Earth leakage circuit breaker 30mA

· Motor protection switch : approximate 6-10A

· Have phase indicator for each phase or other.

7. MZM-4017-7-MANUAL SYNCHRONISATION UNIT

· Have indicator display for voltage, frequency and zero volt, relating field

· Have an optical synchronous cope and synchronization indicator

8. MZM-4017-8-MOTOR PROTECTION SWITCH

· Have overload and instantaneous short circuit trip with approximate 1-1.6A

9. MZM-4017-9-POWER CIRCUIT BREAKER MODULE

· Contact load capacity : 400vAC, 3A

· Main connection : 115/230V, 50Hz

10. MZM-4017-10-GALVANOMETER

· Class : 1.5

· Measurement range : 0 - 2.5A or other

11. MZM-4017-11-POWER FACTOR METER (DIGITAL DISPLAY)

· Power Factor : 0 - 1 - 0

· Phase angle : -90° (capacitance) - 0 - +90° (inductance)

· Voltage package : 1000V

· Current range : 30A

· Frequency range : from 20Hz until 2kHz

12. MZM-4017-12-MACHINE TEST SYSTEM

12-1-DYNAMIC TORQUE SENSOR

· Working voltage: ±15VDC

· Max. torque: ±5Nm

· Max. rotate speed:8000rpm

· Shaft height: 63mm

· Dimensions: 215 x 130 x 145 mm

12-2-3 IN 1TORQUE METER

· Torque measuring range: 0~±5.000 N.M.

· Rotate speed measuring range: 0~5000 rpm

· Power measuring range: 0~2600W

· Output voltage: ±15VDC

· Dimensions: 170×135×70 m

13. MZM-4017-13-DC MACHINE SUPPLY

· Output : 40 - 250V/0-6A DC voltage and current adjustable short circuit-proof, with power adjustment

· Output : 220V/2A direct current (full-wave rectifier)

· Protection : circuit breaker 2A

· Outputs : 4 x 4mm safety sockets

· Display : Digital display for current and voltage

· External constant-voltage power supply : (0-10VDC) via 2 x 4mm safety sockets

SAFETY BRIDGING PLUGS, BLACK, YELLOW AND GREEN - 10 units

· Plugs : safety plugs, 4mm diameter

· Pin spacing : 19mm

· Current : 25A

SAFETY CONNECTIONG LEADS, 32A

· Plugs and sockets : 4m dia (nickel plated)

· Conductor cross-section : 2.5mm

· Safety connecting lead, 10cm black - 4 unit

· Safety connecting lead, 25cm red - 2 unit

· Safety connecting lead, 25cm blue - 2 unit

· Safety connecting lead, 25cm black - 6 unit

· Safety connecting lead, 50cm red - 2 unit

· Safety connecting lead, 50cm blue - 2 unit

· Safety connecting lead, 50cm black - 6 unit

· Safety connecting lead, 100cm red - 2 unit

· Safety connecting lead, 100cm blue - 2 unit

· Safety connecting lead, 100cm black - 4 unit

SAFETY CONNECTING LEADS, 32A YELLOW AND GREEN

· Plugs and sockets : 4m dia (nickel plated)

· Conductor cross-section : 2.5mm

· Safety connecting lead, 25cm yellow/green - 2 unit

· Safety connecting lead, 50cm yellow/green - 4 unit

· Safety connecting lead, 100cm yellow/green - 4 unit
