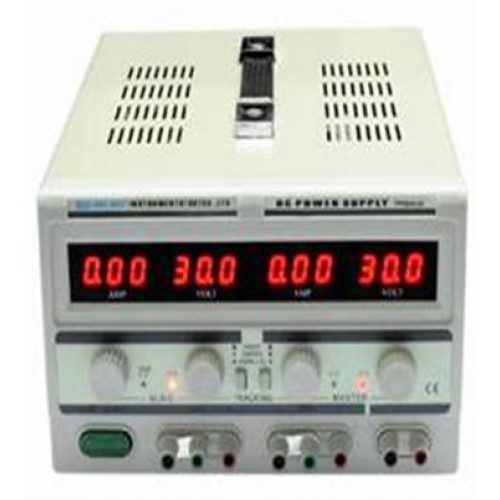

TPR-3005-2D
Model reference MZM-9015
- Category: Test & Measurement
- Model reference: MZM-9015
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
DESCRIPTION
Input voltage: AC220V+/-10%,50Hz+/ 2Hz;AC220V-5%,50Hz+/-2Hz
Two-way regulated power supply
Rated output voltage: 2x0-30V
Rated output current: 2x0-5A
Current effect: CVLoad effect: CVRipples and noises: CVProtection: Current limiting protection
Instruction
Digital voltmeter and ammeter,three digital displays Precision: voltmeter+/-1%,+2 figures; Ammeter+/-2%,+2 figures
Regular output power supply
Nominal output voltage: 5V+/-3%
Nominal output current: 3A
Current effect: Load effect: Ripples and noises: Protection: Current limitation and protection for short circuit
1. Quad Independent DC Output
2. Four LED Display with 3 digits, selectable for two sets output voltage and current display.
3. 2 Output 90W Adjustable Bench Top DC Power Supply with 3 Digits
4. LED Display Auto series, parallel and tracking operation.
5. Constant voltage and constant current operation.
6. Low ripple and noise.
7. Overload and reverse polarity protection
8. Selectable for continuous / dynamic load
9. Output enable / disable control
10. Rotation speed of the fan is controlled by heat sink temperature
- Environmental conditions:0-40Celsius;<90%
- Working hours: constantly
- working more than 8 hours
- Display mode: pointer display
