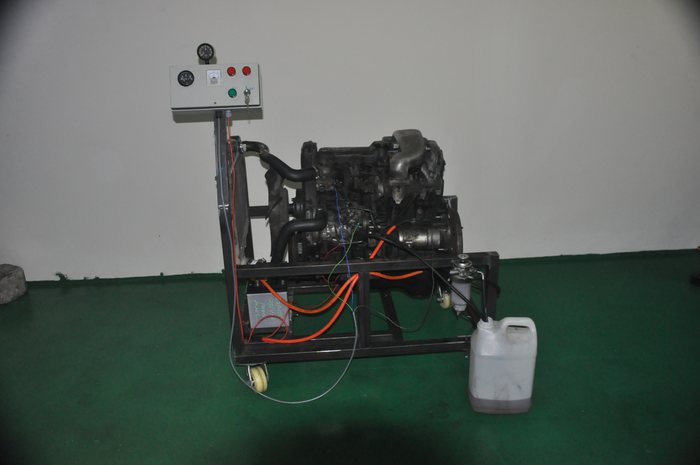

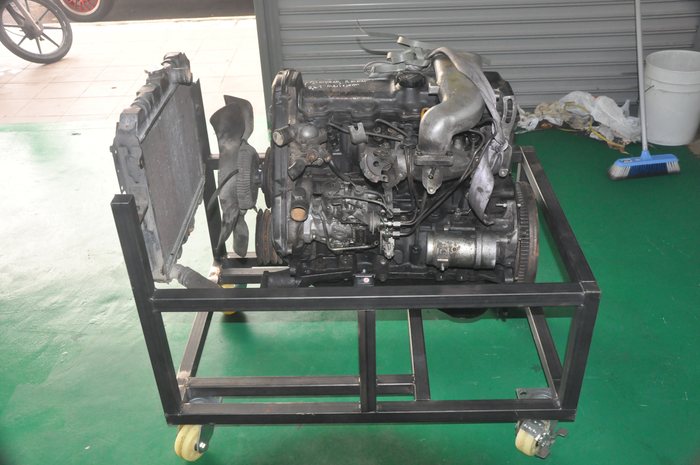

Toyota 2L Engine Trainer on Stand

Toyota 2L Engine Trainer on Stand Product Description

The Toyota 2L Engine Trainer on Stand is an educational training system designed to demonstrate the operating principles, construction, and performance of a diesel internal combustion engine. Based on the Toyota 2L diesel engine, this training unit provides hands-on learning opportunities for students to understand diesel engine operation, fuel injection systems, engine mechanical components, and automotive maintenance procedures.

The trainer is mounted on a specially designed steel stand to facilitate practical demonstrations, component identification, inspection, and troubleshooting exercises. It is suitable for automotive engineering, diesel engine technology, and technical and vocational education and training (TVET).

General Specifications

• Product Name: Toyota 2L Engine Trainer on Stand
• Engine Manufacturer: Toyota
• Engine Model: 2L
• Engine Type: Four-Cylinder Inline Diesel Engine
• Engine Capacity: 2,446 cc
• Engine Cycle: Four-Stroke Diesel Cycle
• Valve Configuration: SOHC, 8-Valve
• Fuel Type: Diesel
• Fuel Injection System: Mechanical Diesel Fuel Injection
• Cooling System: Liquid-Cooled
• Lubrication System: Pressure-Fed Engine Lubrication
• Starting System: Electric Starter Motor
• Charging System: Alternator
• Exhaust System: Exhaust Pipe with Muffler
• Mounting: Heavy-Duty Engine Training Stand

Diesel Fuel Injection System

• Mechanical Diesel Fuel Injection Pump
• Diesel Fuel Injector Assembly
• Fuel Supply and Return Lines
• Diesel Fuel Filter
• Fuel Injection Timing Demonstration
• Fuel Delivery and Combustion System Demonstration

Electrical System

• Battery: 12V Automotive Battery
• Starting System: Electric Starter Motor with Ignition Switch
• Charging System: Alternator with Voltage Regulator
• Electrical Wiring: Engine Starting and Charging Circuit
• Wiring Diagram: Electrical Wiring Diagram, subject to configuration

Instrument Panel

• Engine RPM Gauge (Tachometer)
• Engine Temperature Gauge
• Voltmeter
• Engine Oil Pressure Warning Indicator
• Charging System Indicator

Cooling System

• Radiator Assembly
• Cooling Fan
• Water Pump
• Thermostat
• Coolant Hoses and Connections

Lubrication System

• Engine Oil Pump
• Engine Oil Filter
• Oil Sump and Lubrication Passages
• Engine Oil Circulation Demonstration

Engine Stand

• Heavy-Duty Fabricated Steel Frame
• Secure Engine Mounting Structure
• Four Swivel Caster Wheels for Mobility
• Lockable Wheels for Stability During Training
• Accessible Layout for Engine Inspection and Maintenance
• Protective Safety Features for Practical Demonstrations

Accessories

• Engine Cooling System Components
• Diesel Fuel Supply System
• Exhaust Pipe and Muffler Assembly
• Engine Oil Filter
• Electrical Wiring Diagram, where applicable
• Operating and Maintenance Documentation, subject to availability

Learning Objectives

1. Understand the operating principles of a four-stroke diesel engine.
2. Identify the major mechanical components of the Toyota 2L engine.
3. Understand the operation of the diesel fuel injection system.
4. Study the functions of the cooling and lubrication systems.
5. Understand the engine starting and charging systems.
6. Perform basic engine inspection and maintenance procedures.
7. Develop practical skills in diesel engine fault diagnosis and troubleshooting.

Training Applications

Suitable for TVET institutions, vocational colleges, polytechnics, automotive training centers, and engineering laboratories for practical training in diesel engine technology, automotive maintenance, fuel injection systems, engine diagnostics, and mechanical engineering.
