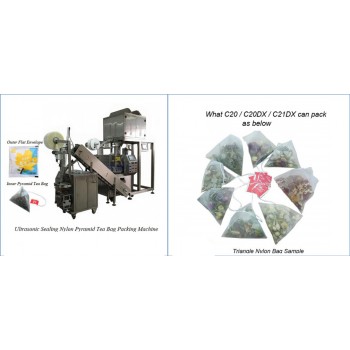

C21DX- PYRAMID TEABAG PACKING MACHINE(WITH PYRAMID NYLON BAG + OUTER ENVELOPE, ULTRASONIC SEALING)
Click image for Gallery
Application
It is suitable for inner pyramid bag with outer envelope, and for packing multi-material
product such as loose leaf tea, herbal tea, health care tea, rose tea, ginseng, etc.
product such as loose leaf tea, herbal tea, health care tea, rose tea, ginseng, etc.
Technical data
Type : Tea Bag Packing Machine Series
Product model : C21DX
Product name : Automatic Pyramid Tea Bag Packing Machine with outer envelope
Packing Material : Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA
Filling range : 1~10g/bag, accuracy:≦±0.1g/bag
Filling method : Electric scale
Packing roll width : 140mm, 160mm, 180mm
Sealing length : 50, 60, 70, 80mm
Outer bag size : W: 80-100mm; L: 90-120mm
Sealing method : Inner Pyramid Bag by ultrasonic sealing and cutting
Bag type : Inner pyramid bag with outer envelope
Quantity of sealing device : 2 sets
Packing speed : 30-60 bags/min
Motor Power : 380V, 50HZ, 1.5KW
Air supply : ≧0.6Mpa (Can be equipped with air compressor)
Weight : 500KG
Dimension : 3000*900*2300mm(L*W*H)
Product model : C21DX
Product name : Automatic Pyramid Tea Bag Packing Machine with outer envelope
Packing Material : Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA
Filling range : 1~10g/bag, accuracy:≦±0.1g/bag
Filling method : Electric scale
Packing roll width : 140mm, 160mm, 180mm
Sealing length : 50, 60, 70, 80mm
Outer bag size : W: 80-100mm; L: 90-120mm
Sealing method : Inner Pyramid Bag by ultrasonic sealing and cutting
Bag type : Inner pyramid bag with outer envelope
Quantity of sealing device : 2 sets
Packing speed : 30-60 bags/min
Motor Power : 380V, 50HZ, 1.5KW
Air supply : ≧0.6Mpa (Can be equipped with air compressor)
Weight : 500KG
Dimension : 3000*900*2300mm(L*W*H)
