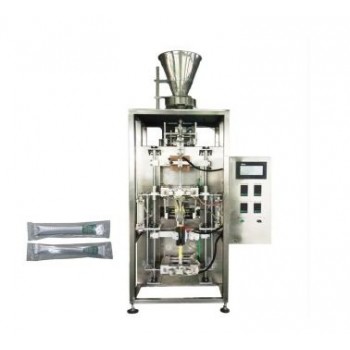

C22 - AUTOMATIC STICK TEA BAG PACKING MACHINE
Click image for Gallery
Application:
It is suitable for tea bag products packing, such as tea leaves, coffee, Chinese medicinal tea and herbal tea, etc.
Technical data:
Type : Tea Bag Packing Machine Series
Product model : C22
Product name : Automatic stick tea bag packing machine
Packing speed : 20~50 bags/min
Filling range : 1 - 10 ml/bag
Packing Material : Composite film like PET/PE,paper/plastic etc, and aluminum-laminated film
Bag size : Inner bag: 20*135mm; Outer bag: 35*160mm
Bag Type : Seamless center sealed stick (Inner bag + outer bag)
Measuring : Volumetric cup
Notch : Flat notch (Cut)
Control system :PLC control system
Power : Ac 220v single-phase 50HZ or Three-phase 380V /50HZ; 3KW
Material :Stainless steel
Weight :400KG
Dimension (L*W*H) : 2000*700*2300mm
