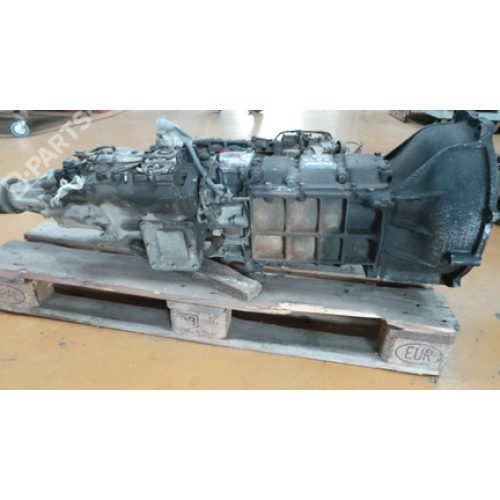

4D56 4WD Gearbox (used)

TECHNICAL SPECIFICATIONS :

1. Gear ratio : 1st gar 3.967, 2nd gear 2.136, 3rd gear 1.360, 4th gear 1.000, 5th gear 0.822, and reverse gear 3.578. Transfer high : 1.000, Transfer low : 1.548

2. Main drive gear bearing end play : 0 - 0.120

3. Front bearing retainer to bearing : 0 - 0.200

4. 3rd and 4th speed synchronizer hub end play : 0 - 0.150

5. Main shaft rear bearing end play : 0 - 0.180

6. Overdrive gear end play : 0 - 0.440

ASSEMBLY AND DISASSEMBLY ROLLING SHELF (WITH SELF-RETENTION WHEELS)

1. The assembly and disassembly rolling shelf is equip with rotating self-retention wheels, permit 360° rotation

2. Material : Mild steel with primer coat and finishing epoxy coated

3. Color : RAL9005

4. Come with heavy duty steel roller wheels for easy mobilization

LARGE OIL DRIP PAN

1. Oil drip pan is to allow the transmission oil collection during the transmission disassembly works

2. Material : mild steel

3. Surface finishing : blackening surface treatment to avoid rusty

4. Come with handle for fitted into and remove from rolling shelf

LITERATURE

· All manuals are written in English

· Model answer

· Teaching manuals

GENERAL TERMS:

· Accessories will be provided where applicable.

· Manuals & training will be provided where applicable.

· Designs & specification are subject to change without notice.

· We reserve the right to discontinue the manufacturing of any product.

COURSEWARE & ACCESSORIES

· Laboratory Manual

· Instructor’s Guide

COUNTRY OF ORIGIN

Made In Malaysia

WARRANTY

1 Year
