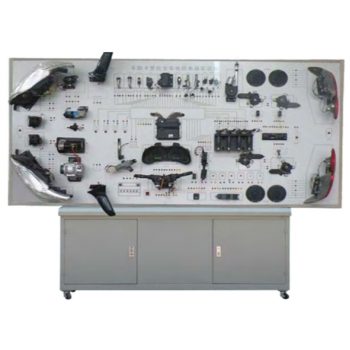

Automotive Electrical Training Kit

PRODUCT OVERVIEW

• Equipped with universal self-locking truckles, the trainer is moveable and easy for flexible teaching.
• The surface of frame is dealt with plastic spraying to ensure color fastness, corrosion protection and ageing resistance.
• The complete frame is rigid structure welded with shock absorption component; all the materials used for it are stable and reliable, such as the square tube and angle iron.

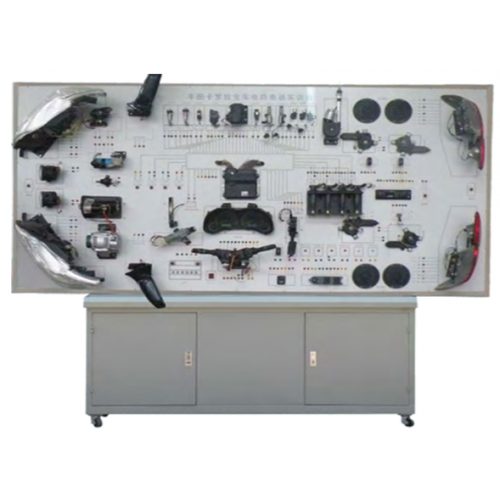

• The control panel is made of pure aluminum-plastic material, painted with colorized electronic control system principle diagram that is the same as the original car control system.

General Specifications:

• The Trainer Board should be provided practice - oriented instruction using original vehicle components mounted on Bakelite Laminate with melamine.
• For assembling the exercises, the boxes are mounted on a perforated vertical frame.
• The exercise assembly should be fast and straight forward.
• Electrical connections should be completed with 4 mm. Plugs and all termination should be color - coded according to DIN standards.
• The structure of the topics covered should enable step - by - step instruction towards definite aims.
• Typical results to the exercise should be an integral part of all the exercises and ease the task of student assessment.

i. Interior lamp.

ii. Rear Lighting.

iii. Headlamps.

iv. Fog lamp.

v. Parking lights system.

vi. Horn system.

vii. Flasher indicator system.

viii. Hazard warning light system.

ix. Signaling meter (lubrication. engine temperature; brake fluid level, fuel level)

x. Washing system

xi. Electric control side mirror.

xii. Ignition system.

xiii. Alternator system.

xiv. Safety and alarm operating system.

xv. Driving operating electrical system.

xvi. Comfortable automotive electrical system.

• Power supply: input 220Vac 50 Hz. Output 12Vdc 15 A. 1 set. Battery 12 V (N 120) 1 set.
• Complete training operation for lecturer.

TECHNICAL PARAMETERS

Dimensions	2500mm x 500mm x 1800mm
Operation environment	Temperature -5°C -40°C, Humidity ≤80%
Vehicle type	Proton
Working Voltage	230V
Frequency	50/60Hz
Power	350W
