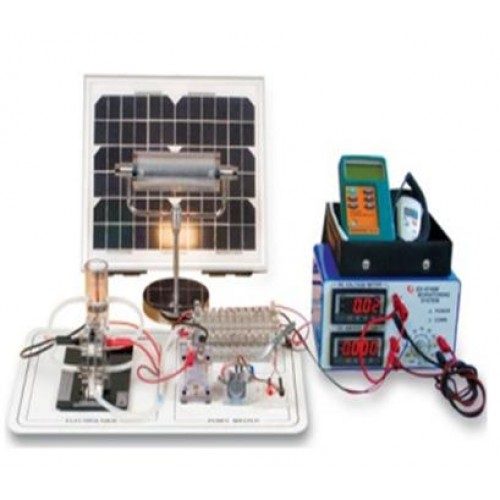

Fuel Cell Trainer (case Type)

DESCRIPTION:

• Understand the conception and principal of fuel cell generation
• Fuel cell generation using photovoltaic
• Complete disassembly and assembly of the fuel cell
• Current and voltage measurement for PEM Fuel Cell Stack according to each of Cell
• Power production experiment using PEM Fuel cell
• Modularized of the processes covering
• electrical dissolution of water and drive of fuel cell
• Experiment on various types of load
• PEMFC( Hydrogen) generation experiment
• Testing of load for maximum four fuel cell at the same time Monitoring through Lab VIEW program

Experiments:

Photovoltaic Generation

• Solar cell generation experiment according to luminance
• Solar cell generation experiment according to angle
• Experiment on characteristic curve solar cell IV
• Experiment (Motor, Lamp, Resistor) according to solar cell Load
• Fuel Cell Generation
• Understand the conception and principal of fuel cell generation
• Hydrogen electrical dissolution experiment
• Experiment the principal for Hydrogen Generation
• Experiment characteristic Load of PEMFC Cell (Motor, Lamp, Resistor)
• Experiment characteristic Load of PEMFC Stack (Motor, Lamp, Resistor)
• Experiment changed power which is created from each of cell
• PEMFC cell serial and parallel experiment
• Experiment on characteristic curve IV of PEMFC Stack
• Experiment on disassembly and assembly of PEMFC Cell

Configuration:

• Solar Module: 1 ea.
• Halogen Lamp: 1 ea.
• Dimmer: 1 ea.
• Solar H2/Air PEMFC Stack (PEM Fuel Cellx10): 1 ea.
• PEM Fuel Cell: 2 ea. (Serial and parallel experiment)
• H2/Air Electrolyze: 1 ea.
• Adjust Resistor / Electric Load Meter: 1 ea.
• LED Lamp Load: 1 ea.
• Motor Load: 1 ea.
• Insolation Meter: 1 ea.
• Infrared Thermometer: 1 ea.
