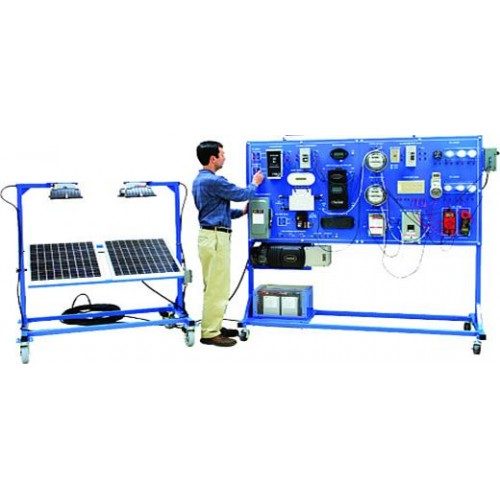

PVC Solar Panel Trainer

DESCRIPTION:

A solar panel (also solar module, photovoltaic module or photovoltaic panel) is a packaged, connected assembly of photovoltaic cells. The solar panel can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential application. Each panel is rated its DC output power under standard test conditions, and typically ranges of a panel determines the area of a panel given the same rates output– an 8% efficient 230 watt panel will have twice the area of 16% efficient 230 watt panel. Because a single solar panel can produce only a limited amount of power, most installations contain multiple panels. A photovoltaic system typically includes an array of solar panels, an inverter, and sometimes a battery and or solar tracker and interconnection wiring.

1. POWER INVERTER DC TO AC (MZM-5005-42)

Specification :

• Inverter : 12Vdc to 220Vac
• Continuous power : 5000W
• Surge Power : 1000W
• Rated output voltage : VAC 240V+10%
• Input voltage range : DC11V-24V
• Over voltage shutdown : Over DC 30V
• Under voltage shutdown : Below DC11V
• Output wave form : modified sine wave
• Frequency : 60Hz
• Over load shutdown : Yes
• Thermal shutdown : Yes
• Short circuit shutdown : Yes
• Efficiency : up to 90%
• Total harmonic distortion : <5%
• No load current Draw : <0.4A

2. BATTERY 12VDC (PK95-12)

• (AGM Technology) Absorted Glass Matt
• Voltage : 12V Capacity@20hr
• Metod : Sealed Lead Acid Batt
• Cycle Use : 14.5—14.9 V
• Standby Use : 13.6— 13.8 V
• Initial Current : 30A
• Constant Voltage Charge : 25C

3. SOLAR CHARGER CONTROLLER (MZM-5005-45) 10Vdc—36Vdc

Electrical Parameter

• Nominal system voltage : 12/24VDC Auto work
• Battery voltage range : 6-36V
• Rated battery current GAMMA : 20A
• Charge circuit voltage drop : <0.26V
• Discharge circuit voltage drop : <0.15V
• Self-consumption : <6mA
• Battery charging setting-sealed : 12V-24V
• Over voltage disconnect voltage : 16V-32V
• Charging limit voltage : 16V-31V
• Equalize charging voltage : 15V-29V
• Float charging voltage : 14V-28V
• Boost Reconnect Charging : 14V - 27V
• Low Voltage Reconnect Voltage : 12V - 25V
• Under voltage warning reconnect : 12V - 25V
• Under Voltage Warning Voltage : 12V - 24V
• Low Voltage Disconnect Voltage : 12V - 22V
• Equalize Duration : 2 hours
• Boost Duration : 2 hours

4. Surge Protection Devices (SPD)

• Hager SPV325
• 3 module
• Imax = 25 kAt 1000Vdc
• Replaceable cartridges (Positive/Negative & earth)
• With end of life indicator

5. DC switch disconnected

• Hager SB432PV
• 4 pole c.32A
• 1000Vdc
• 3.5 module width

6. Fuse Carriers & Fuse links

• Hager L501PV single pole
• Hager L502PV Double Pole
• 1 & 2 Module (10.3 x 38)mm d. 1000vdc

7. PV Fuse-carriers

• Hager LF320PV - 20A

8. Solar Module PV

• Poly-crystalline—200 Watt
• Electrical Characteristics

a. Max Power Pmax : 200Wp

b. Max Power Voltage Vmp : 18.00V

c. Max Power Current Imp : 3A

d. Open-Circuit Voltage Voc : 22V

e. Short-Circuit Current ISC : 3A

f. Cell Efficiency : 16.00%

g. Module Efficiency : 13%

h. Power Tolerance : 3%

i. Series Fuse Rating : 10A

Accessories (Solar Training Panel)

1. PV input on/off switch : 2 Unit

2. PV input voltage meter : 2 Unit

3. Surge Protective Device (SPD) : 1 Unit

4. Beta Remote Meter : 1 Unit

5. Beta Charge Controller : 1 Unit

6. 12V Seal Lead Battery : 2 Unit

7. AC240V output Voltage Meter : 1 unit

8. 24VDC to AC240V Power Inverter : 1 Unit

9. DC switch disconnected : 1 Unit

10. Fuse Carriers & Fuse Links : 1 Unit

11. PV Fuse-carries (20A) : 1 Unit

12. 200W Polycrystalline PV : 1 Unit

13. Cable solar (10mm PVC 2 pair) : 2 Unit

14. Portable stand (for solar module PV) : 2 Coil

15. MC4 Connector : 10 Pair

16. Halogen Lamp : 2 Unit
