Basic Pneumatic Trainer
Model reference MZM-6000
- Category: Pneumatic, Hydraulic & Fluid Mechanics
- Model reference: MZM-6000
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
STANDARD SUPPLY CONSISTS OF:
- Air filter, Regulator & Lubricator unit (FRL Unit)
- Pressure Manifold with Four ON / OFF Valves for multiple connections
- Single Acting Pneumatic Cylinder (Spring Return)
- Double Acting Pneumatic Cylinder
- 5/2 way Roller Valve
- 3/2 way Roller Lever Operated Valve
- 3/2 way Palm Operated Valve
- 5/3 way Hand Lever Valve
- 5/2 way Single Pilot Spring Return Valve
- 5/3 way Double Pilot Spring Centered Valve
- Quick Exhaust Valve
- 3/2 way Disc Rotary Valve
- 5/2 way Push Button Valve
- Flow Control Valve
- 3/2 way Pilot Operated Valve
- 5/2 way Foot Operated Valve
- AND Valve
- Shuttle Valve
- 5/2 way Hand Lever Valve
- 3/2 way Hand Lever Valve
- PU Tubing’s (for quick connections)
- Detailed Instruction Manual
DESCRIPTION

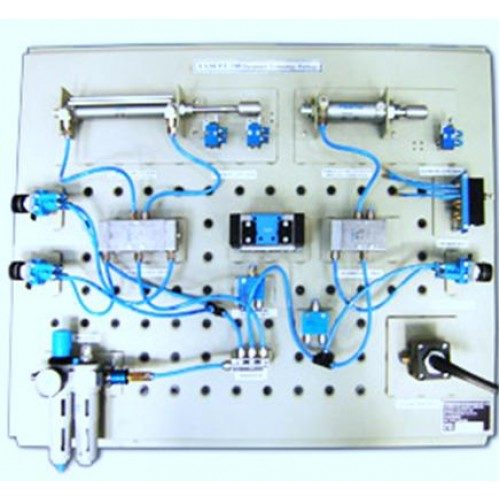

The Pneumatic Trainer Kit consists of an ergonomically designed stand with proper working area to build various circuits. All the components are pre-fitted on the working area & duly fitted with 'One Touch Push in Fittings' for easy fitting of PU tubes - which are provided for fast & leak-proof connections. Good quality precision connector’s plastic tubing of 4 mm is provided.
