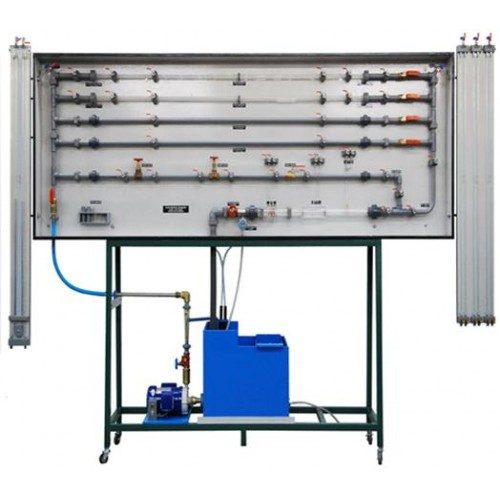

Fluid Friction Apparatus
Model reference MZM-6010
- Category: Pneumatic, Hydraulic & Fluid Mechanics
- Model reference: MZM-6010
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
DESCRIPTION:
Range Of Experiment
- Laminar/turbulent flow in pipes
- Energy losses in bends and fittings
- Orifice plate
- Venturi meter
- Pitot tube
- Use of manometer (Hg & H2O)
Specification
- Smooth-bore pipes of variousdiameters
- 16.0 ㎜ Bore (PVC Tube VP 16)
- 9.5 ㎜ Bore (Acryl Tube)
- 5.5 ㎜ Bore (Acryl Tube)
- Artificially roughened pipe
- 16.0 mm Bore (PVC Tube VP16)
- 90° Bend (PVC 16 ㎜)
- Bends & Fittings
- 90° Elbow(PVC 16 ㎜)
- 90° T (PVC 16 x 16 ㎜)
- Sudden change of area
- Sudden contraction: 16㎜ - 6㎜, 16mm - 10mm
- Sudden enlargement: 6㎜ - 16㎜, 10mm - 16mm
- Valves
- Gate valve : 15A
- Glove valve : 15A
- Ball valve : 15A
- Venturi tube (Acryl)
- Inlet Dia.-24 ㎜, Throat Dia.-14 ㎜
- Orifice meter (Acryl)
- Inlet Dia.-24 ㎜, Orifice Dia.-16.0 ㎜
- Manometer
- Mercury manometer : 1000 ㎜ (1 pair)
- Water manometer : 1000 ㎜ (3 pair)
- Pump (Magnet) & Motor : 70 ?/min
- Water supply system
- Sump tank (PVC) : 140 LTSElectrical supply : 220V(60Hz), 143W
