Bernoulli’s Principle Demonstration

DESCRIPTION:

DATA SHEET UNDER REVISION

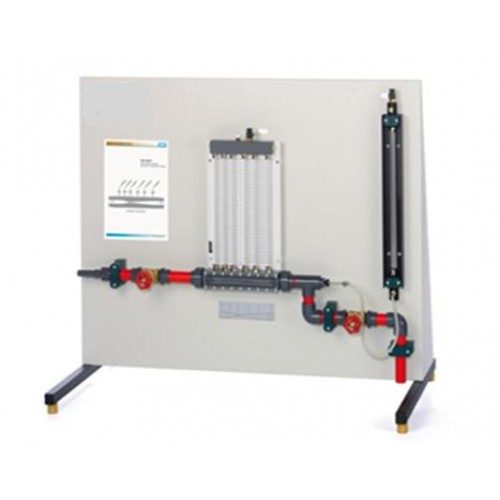

The entire experimental set-up is clearly laid out on a metal panel, this is fitted to the MZM Basic Hydraulics Bench. The bench provides the water supply for carrying out the experiment. The experimental set-up comprises a measurement section with a transparent venturi tube, the associated pipework and 2 pressure measuring devices. Six measurement connections on the venturi tube enable the static pressure along the pipe through which the water is flowing to be indicated on a multiple tube manometer. The total pressure is measured with a pitot probe and displayed on a second tube manometer. The flow rate is determined using the volumetric tank on the bench.

Learning Objectives / Experiments

• Demonstration of Bernoulli's law
• Display of the pressure characteristic using the venturi tube
• Determination of the flow rate factor

Specification

1. Experimental set-up for demonstrating Bernoulli's law, for use with the HM 150 Basic Hydraulics Bench
2. Venturi tube made of transparent plastic, divided into 6 segments, each segment with measuring connection
3. 2 tube manometers

Technical Data

• 6 tube manometer
• Measuring range: 290mmWC
• Tube manometer
• Measuring range: 370mmWC
• Dimensions and Weight
