Brake System Trainer
Model reference MZM-8020
- Category: Automotive
- Model reference: MZM-8020
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Send Enquiry
Your Name
Your Email
Tele Phone
DESCRIPTION

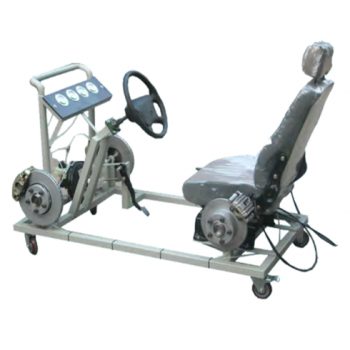

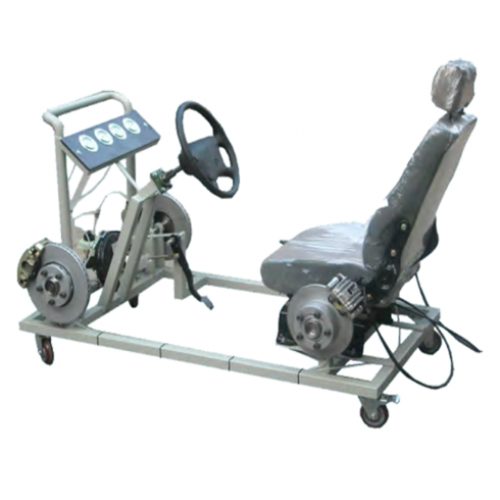

This demonstrator provides the instructor with a fully operational brake rig for group, or whole class, demonstration. The demonstrator shows a cross diagonal hydraulic circuit, based upon a national product (PROTON). The demonstrator in mounted on a steel self-contained frame and base plate, complete with castor.
The accompanying manual includes suggested hand-on practical activities than can be perform using demonstrator, together with basic operating instruction. Maintenance and health and safety issues are also addressed
PRODUCT OVERVIEW :
· Equipped with universal self-locking truckles, the trainer is moveable and easy for flexible teaching.
· The surface of frame is dealt with plastic spraying to ensure color fastness, corrosion protection and ageing resistance.
· The complete frame is rigid structure welded with shock absorption component; all the materials used for it are stable and reliable.
PRODUCT COMPOSITION
- Front brake master cylinder and Servo
- Rear brake
- Brake master cylinder
- Brake disc, brake caliper
- Front wheel bracket
- Transparent brake pipe
- Movable rack
- Front / hub assemblies
- Rear drum / hub assemblies
- Master cylinder and servo
- Hand brake and brake pedal with switch
TECHNICAL PARAMETERS
|
Dimensions |
1200mm x 800mm x 900mm |
|
Operation environment |
Temperature -5°C - 40°C, Humidity ≤80% |
|
Automobile type |
Mitsubishi Mzm |
|
Weight |
95KGS |
