Engine Proton Campro CFE
Model reference MZM-8016
- Category: Automotive
- Model reference: MZM-8016
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification

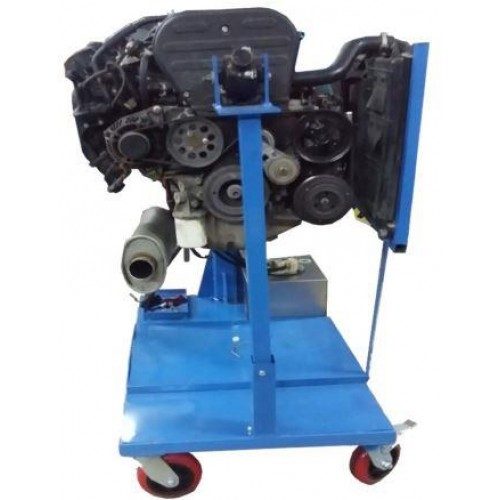

CamPro CFE Engine Trainer
General Specifications
The CamPro CFE Engine Trainer is based on the DOHC CamPro engine, featuring a variable-length intake manifold designed to demonstrate the principles of variable intake air management.
The engine trainer is equipped with a liquid cooling system, safety guard, starting system, fuel system, charging system, oil filter, and exhaust system. It is designed for practical training in automotive engineering, engine operation, maintenance, and troubleshooting.
Electrical System- Battery: 12V N60
- Charging System: Alternator with IC Regulator
- Ignition System: Key-operated ignition switch
- Instrument Panel: Integrated engine monitoring instruments
- Wiring Diagram: Complete electrical wiring diagram included
- Engine RPM Gauge
- Fuel Level Gauge
- Engine Oil Pressure Warning Indicator
- Engine Vibration Absorber Rubber Mounts
- Exhaust Pipe with Muffler System
- Plastic Working Tray
- Fuel Tank: MZM SUS304 Stainless Steel Fuel Tank
- Capacity: Maximum 4 Liters
- Fuel Level Float
- Fuel Pump
- Fuel Filter
- Structure: MZM Fabricated Steel Frame
- Material Thickness: 2.3 mm Square Tubing and Steel Plate
- Mobility: Four Heavy-Duty 6-Inch Swivel Caster Wheels
- Load Capacity: 300 kg Heavy-Duty Caster Wheels
- Locking Mechanism: Two Lockable Wheels
- 360-Degree Swivel Mobility for Easy Maneuverability
- Paint Code: HY1011 / A1057-49
- Finish: Hammer Tone Finish
- Coating: High-Quality Powder Coating
- Curing Temperature: 180°C
