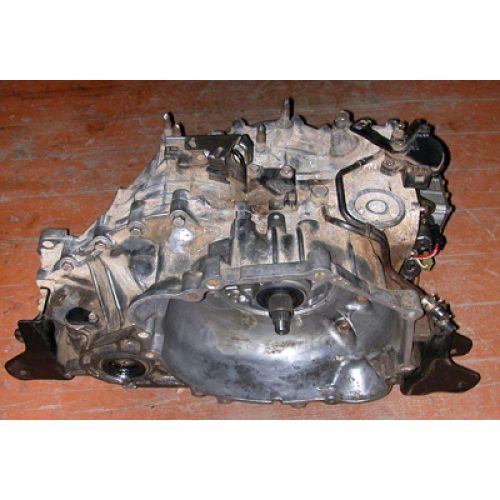

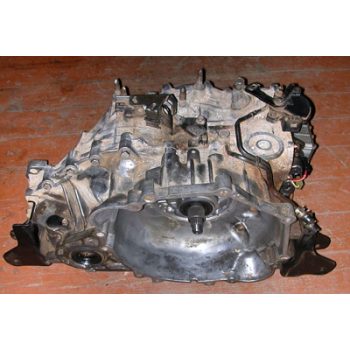

F4A41 Gear Box Automatic (used)

TECHNICAL SPECIFICATIONS :

1. Speedometer gear ratio : 31/36

2. Final gear ratio : 3.502 - 4.208

3. Torque converter type : 3 elements, 1 stage, 2phase type

4. Transmission type : 4 speed forward, 1 speed reverse

5. Gear ratio : 1st gar 2.842, 2nd gear 1.529, 3rd gear 1.000, 4th gear 0.712 and reverse gear 2.480

6. No. of under drive clutch disc : 2 - 4

7. No. of overdrive clutch disc : 2 - 4

8. No. of reverse clutch disc : 2 - 4

9. No. of low reverse brake disc : 2 - 4

10. No. of second brake disc : 2 - 4

ASSEMBLY AND DISASSEMBLY ROLLING SHELF (WITH SELF-RETENTION WHEELS)

1. The assembly and disassembly rolling shelf is equip with rotating self-retention wheels, permit 360° rotation

2. Material : Mild steel with primer coat and finishing epoxy coated

3. Color : RAL9005

4. Come with heavy duty steel roller wheels for easy mobilization

LARGE OIL DRIP PAN

1. Oil drip pan is to allow the transmission oil collection during the transmission disassembly works

2. Material : mild steel

3. Surface finishing : blackening surface treatment to avoid rusty

4. Come with handle for fitted into and remove from rolling shelf

TECHNICAL FEATURES:

· 4 speed automatic transmission electronic controlled type, front wheel drive

· Gearbox must be complete with :

· Torque converter

b). Special Features

· Good condition
