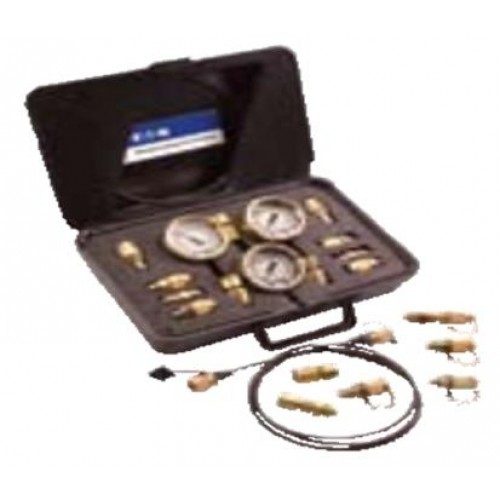

Hydraulic Test Set
Model reference MZM-6006
- Category: Pneumatic, Hydraulic & Fluid Mechanics
- Model reference: MZM-6006
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
DESCRIPTION:
Pressure gauge kit and screw together test couplings provide accurate and efficient pressure control and monitoring of your hydraulic system while minimizing the introduction of contamination.
APPLICATIONS
Hydraulic and mineral based fluids - Agriculture - Construction - On-Highway – Industrial
FEATURES
Test system at working pressure - Accurate pressure control and system monitoring - Leak free connection before piston valve opens - simple and fast screw together connections - self-locking caps - Viton seals
KIT INCLUDES
- (2) 1/8" NPT Test Couplings
- (2) 1/4" NPT Test Couplings
- 7/17-20 UNF Test Coupling
- 9/16-20 UNF Test coupling
- 1/4" NPT Gauge adapters
- Union Adapters
- 60" Test hose Assemblies
- (-)30 in/Hg -30 psi Gauge
- 1,000 psi Gauge
- 7,500 psi Gauge
- Carrying case
