Orifice Meter Trainer
Model reference MZM-6009
- Category: Pneumatic, Hydraulic & Fluid Mechanics
- Model reference: MZM-6009
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
DESCRIPTION:

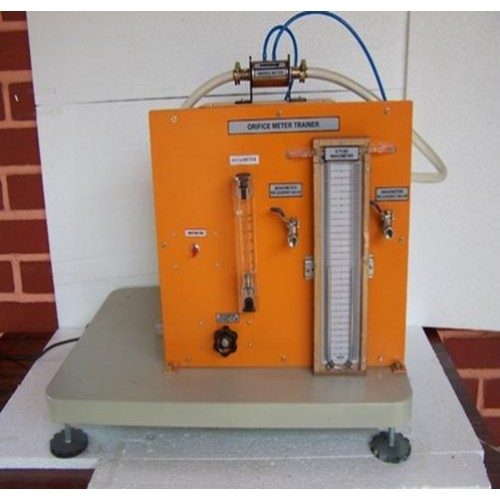

Our Orifice Meter Trainer also called as Flow Measurement Trainer. This setup is a table top model. It comprises of source and measuring tank. The measuring tank is of acrylic with liters graduated. A small FHP pump is fitted to circulate the water. A orifice meter with U-tube manometer is provided to measure the flow rate. A Rota meter is provided to measure the exact flow rate. Control valve is provided to control the water flow rate. Digital timer is provided to note down the duration of flow.
Specification:
Rota meter :6 to 100 LPM
Orifice Meter : Small orifice plate with ¼ BSP tube fitted with U-tube manometer.
Flow Rate : 6 to 100 LPM
Pump :FHP vertical pump
Differential pressure sensor in lieu of U-type manometer with digital flow indicator at extra cost can
