Pneumatic Trainer

DESCRIPTION:

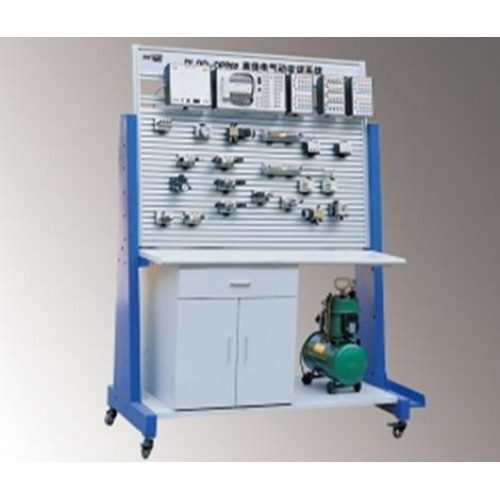

The MZM-6003 advanced electro pneumatic training system is added with electronic control units on the basis of pneumatic training system. It uses a separate relay control unit and multiple buttons for electrical control. Users can also choose a PLC so as to further understand and master the PLC. The PLC can communicate with a PC to realize intelligent control. Experimental Project Type (Different pneumatic loops and control systems can be formed by users themselves)

• Basic pneumatic control loop experiment
• Automatic control of single action cylinder
• Automatic control of double action cylinder
• Application of PLC control technology
• Application of relay control technology
• Other comprehensive, expanded pneumatic loop experiments

Examples of Basic Pneumatic Loop

• Delay loop
• Buffer circuit
• Speeds change loop
• Interlock circuit
• Overload protection circuit
• Secondary pressure control loop
• High and low voltage conversion circuit
• Single-acting cylinder speed control loop
• Double-acting cylinder one-way speed control loop
• Double-acting cylinder two-way speed control loop
• Single-acting cylinder commutation circuit
• Double-acting cylinder commutation circuit
• Single-cylinder reciprocating control loop
• Single-cylinder continuous reciprocating loop
• Sequential action loop of straight-line cylinder and rotating cylinder
• Multi-cylinder sequential action loop
• Double cylinder synchronous action loop
• Unloading loop
• Application circuit of OR gate shuttle valve
• Application circuit of AND gate double-pressure valve
• Application circuit of quick exhaust valve
• Application of magnetic inductive proximity switch
• Application of the sensor in the control system
• Relay control loop
• PLC-controlled pneumatic circuit and system
