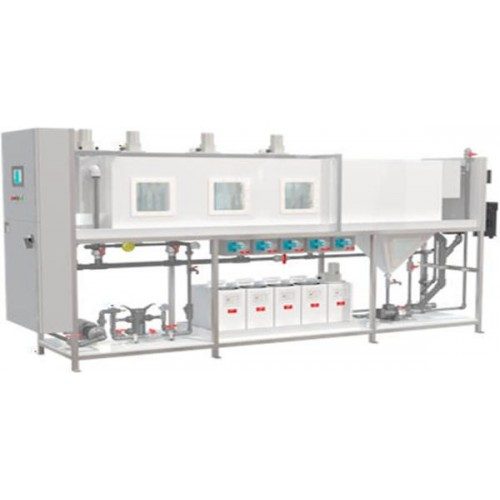

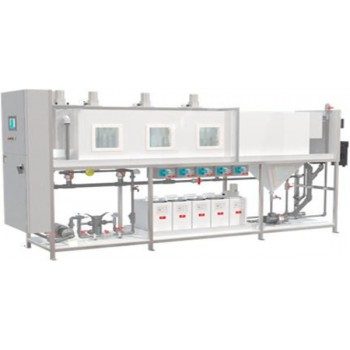

Standard Coagulation, Flocculation, and Sedimentation Pilot Plants
Model reference MZM-6017
- Category: Pneumatic, Hydraulic & Fluid Mechanics
- Model reference: MZM-6017
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Send Enquiry
Your Name
Your Email
Tele Phone
DESCRIPTION:
Designed to meet the requirements of many conventional filtration pilot applications, this standard module combines a chamber for coagulant rapid mixing, windowed basins for flocculation, and a lamella plate settler. Also includes five separate flow-paced chemical injection systems.
SPECIFICATIONS :
|
Flow Rate |
1...6.5 gpm |
|
Rapid Mix Chamber |
2 @ 3.4 gal |
|
Rapid Mix Velocity Gradient |
20...1089 s-1 |
|
Floc Basins |
3 @ 50.4 gal |
|
Floc Basin Velocity Gradient |
3...113 s-1 |
|
Floc Basin Detention Time |
11.9 minutes per basin |
|
Sed Basin |
1 @ 100 gal |
|
Settling Plates |
2...30 |
|
Settling Area |
1.49 sq ft per plate |
|
Sed Basin Detention Time |
22.4 minutes |
|
Chemical Feed Systems |
5 |
|
Chemical Feed Pumps |
5 @ 0.11...42 gpd |
|
Chemical Tank Capacity |
5 @ 7 gal |
|
Dimensions |
161"L X 30"W X 81"H |
|
Dry Weight |
1440 lbs. |
|
Electrical Requirements |
11.2 A Max @ 119 VAC |
|
Monitored Parameters |
Feed Flow, Feed pH, Feed Turbidity, Settled Water pH, Settled water Turbidity, Temperature |
|
*based on standard model as shown. Some options include 2, 3, or 4 floc basins, pressure feed valve, etc. Please contact our sales team for more information. |
