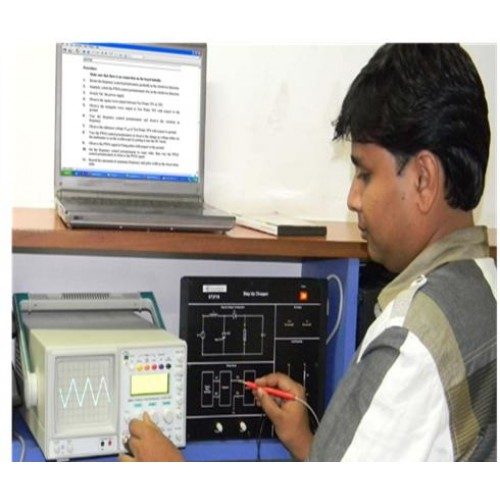

Step UP Copper
Model reference MZM-3001
- Category: Electronic Engineering
- Model reference: MZM-3001
- Built to order in our Penang workshop
- Delivery, installation and commissioning available
- Lecturer training and documentation included
Price on application. Specifications can be adapted to your syllabus, supply voltage and laboratory space.
Specification
Your Email
Tele Phone
DESCRIPTION:
This is are learning platform which is very useful for student to understand the concept of thyristor firing method and working off Dc to Dc conversion on various load configurations. Platform is provided with inbuilt Dc power supply exhaustive learning material.
Feature:
- Built in DC Power Supply
- On board firing circuit
- Test points provided to check the outputs at different blocks
- Easy to operate and understand
- Sockets provided to make different connections
- 2 Year Warranty
Scope of Learning:
- Study SCR Firing Circuit.
- Study Step-Up Chopper with resistive load.
- Study Step-Up Chopper with resistive inductive load.
Technical Specification:
- On Board Firing Circuit :Triangular wave, Compartor firing scheme
- Frequency Variation : 27 Hz to 5 KHz (approx.)
- PWM variation : 0 - 50%
- Interconnections : 2 mm sockets (Goldplated) SCR assembly, SCR TYN 616, 600 V, 16A
- Test points : 5 nos (Gold plated)
- Mains Supply : 220V/110V; 50 Hz / 60Hz
- Learning material : CD (Theory, procedure, Reference results, etc.Online (optional)
- Operating Conditions : 0-40oC, 85% RH
